ATE brake fluids

Optimum performance for brake systems based on glycol

The ideal brake fluid for every vehicle application

The ATE brand represents years of expertise in the development of brake fluids as part of original equipment automotive brake assemblies. We’ve learned that no one brake fluid can be the ideal brake fluid for every vehicle application. That’s why ATE offers four brake fluid formulations. While each is designed for a different type of vehicle brake system, all feature viscosity, boiling point, and pressure behavior that allow brakes systems to react quickly and reliably.

The ATE Brake Fluid line includes ATE SL, ATE SL.6, ATE TYP 200 and ATE 5.1. All feature high-quality additives that help deliver outstanding corrosion protection and optimum compatibility with brake system sealing materials.

From passenger cars to pickups, and from SUVs to race cars, the ATE Brake Fluid line has the right formula for your application.

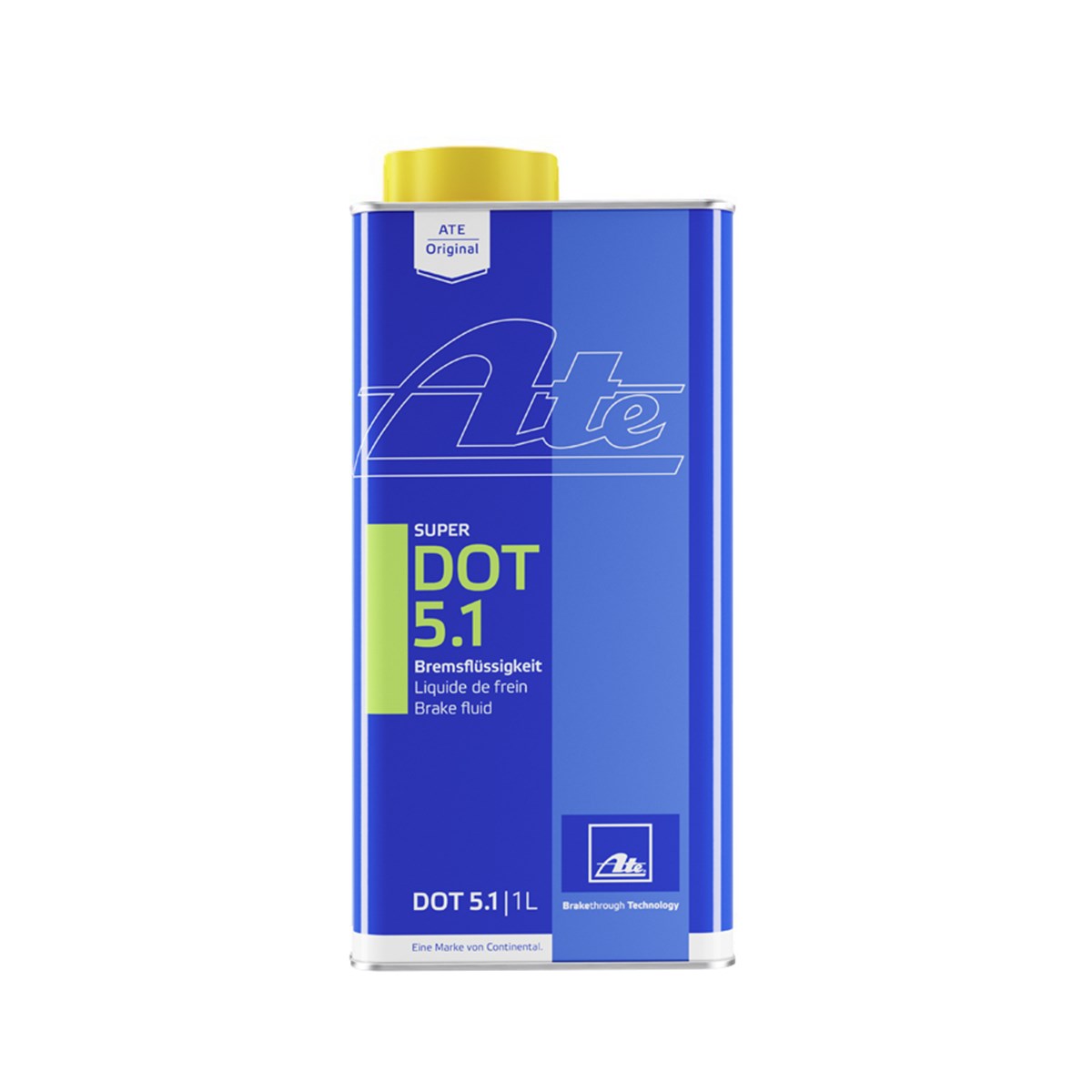

ATE Super DOT 5.1 Brake Fluid is the newest addition to our line. A glycol ether-based brake fluid, it combines a high wet boiling point of 356 °F and outstanding viscosity in the extreme cold, something that previously available brake fluids could not achieve. ATE Super DOT 5.1 delivers excellent performance and maintains outstanding viscosity, even at -40 °F. With a maximum of 750 mm²/sec. at -40 °F, ATE Super DOT 5.1 viscosity values exceed even those of ISO Class 6, which are well above the specifications for DOT 5.1 class brake fluids.
Thanks to its low viscosity, ATE Super DOT 5.1 enables driving safety systems such as ESP and ABS to react quickly, even in extremely cold conditions. The 356 °F wet boiling point enables DOT 5.1 to withstand high brake loads and delivers a longer service life. ATE Super DOT 5.1 only has to be changed every three years.

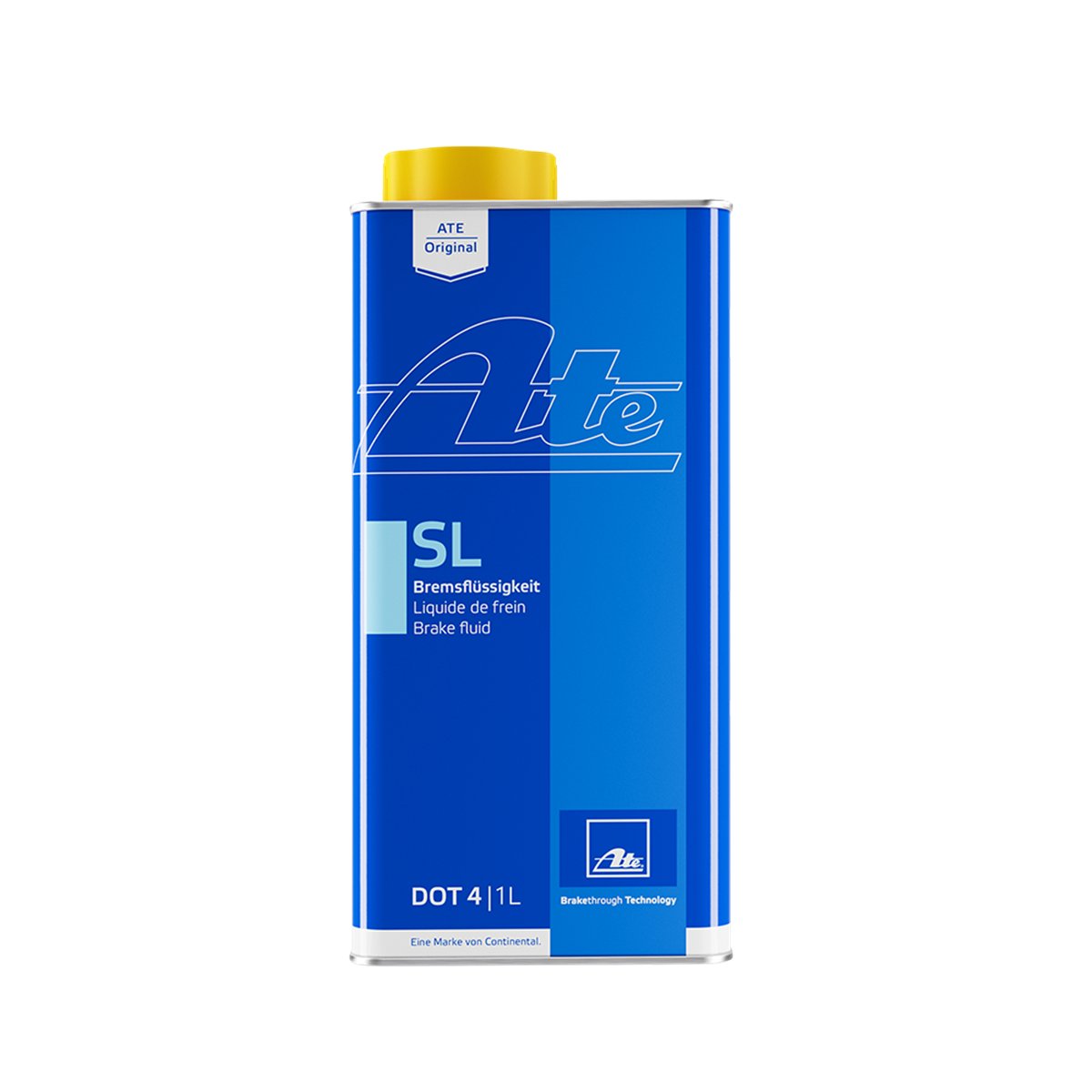

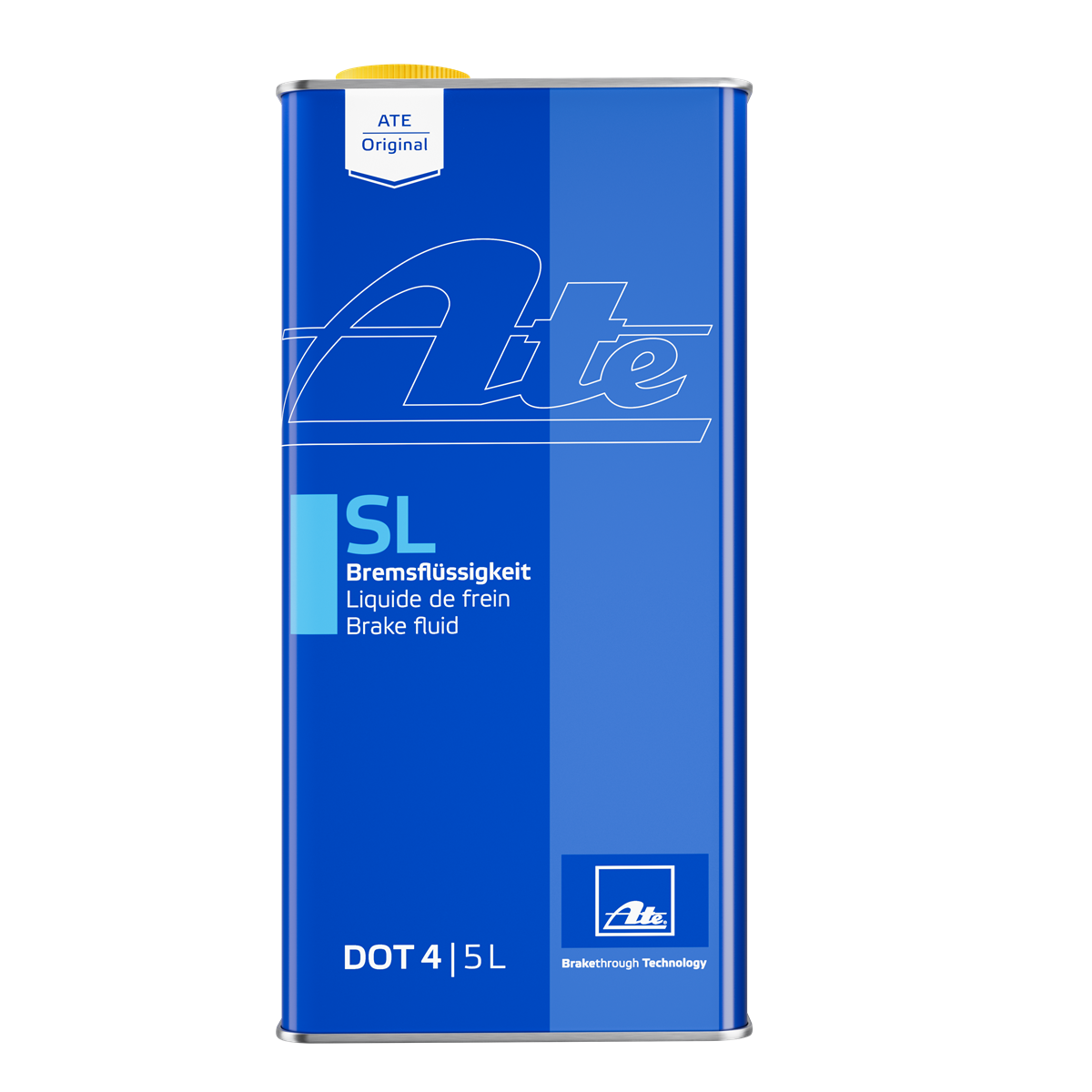

ATE SL Brake Fluid is an excellent DOT 4 replacement for use as hydraulic fluid in brake and clutch systems of motor vehicles. It features a mixture of polyethylene glycol ethers, polyethylene glycols, and boric acid esters of polyethylene glycols with anti-corrosion / anti-aging agents. ATE SL meets and exceeds the requirements of the brake fluid standards FMVSS-No. 116 – DOT 4, SAE J1704 and ISO 4925, Class 4, among others.

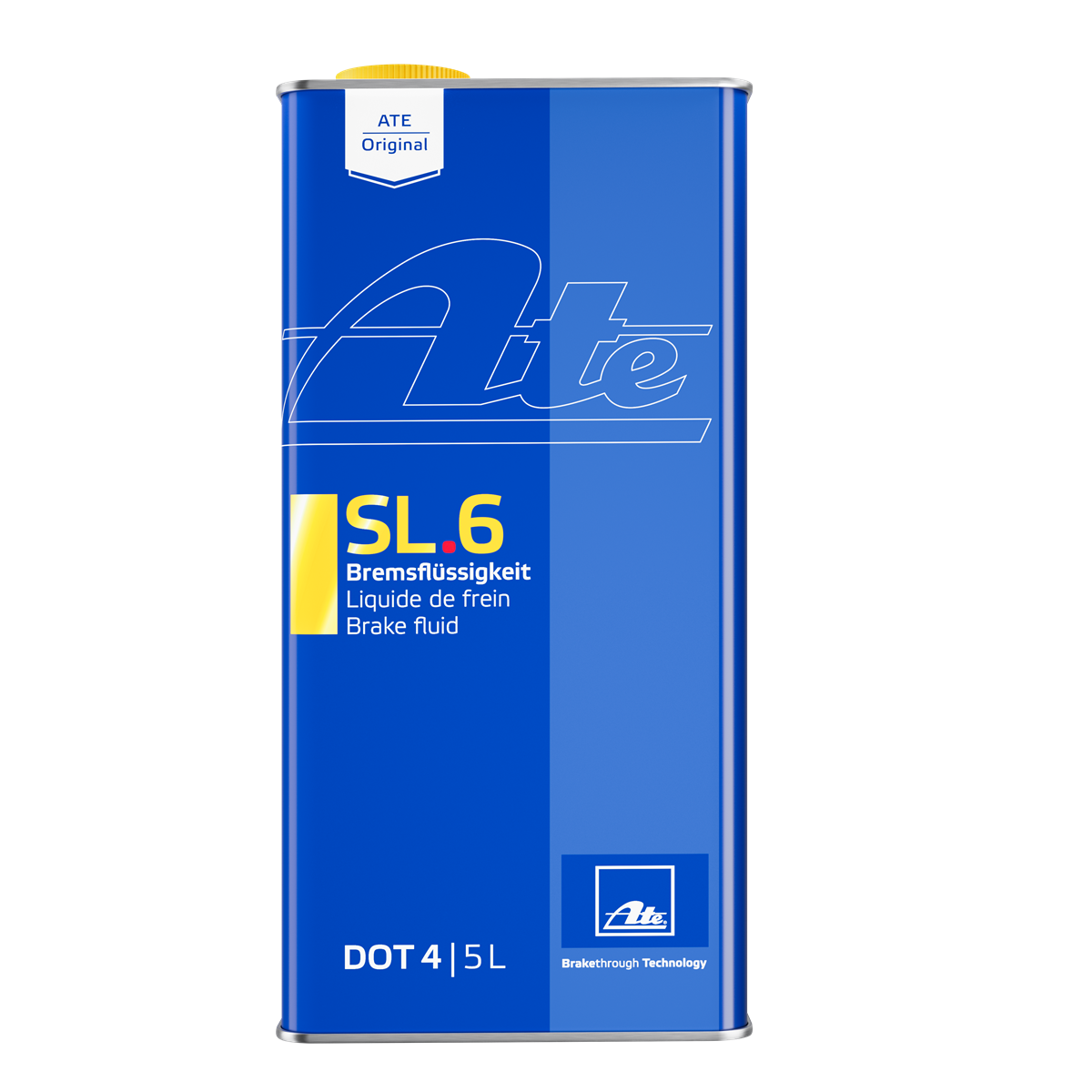

ATE SL.6 Brake Fluid is specially formulated for use in vehicles with ESP, ABS, and TCS. It features a low-viscosity texture that allows electronic safety systems to react more quickly. ATE SL.6 offers excellent application coverage for the advanced braking systems used in high-end vehicles.

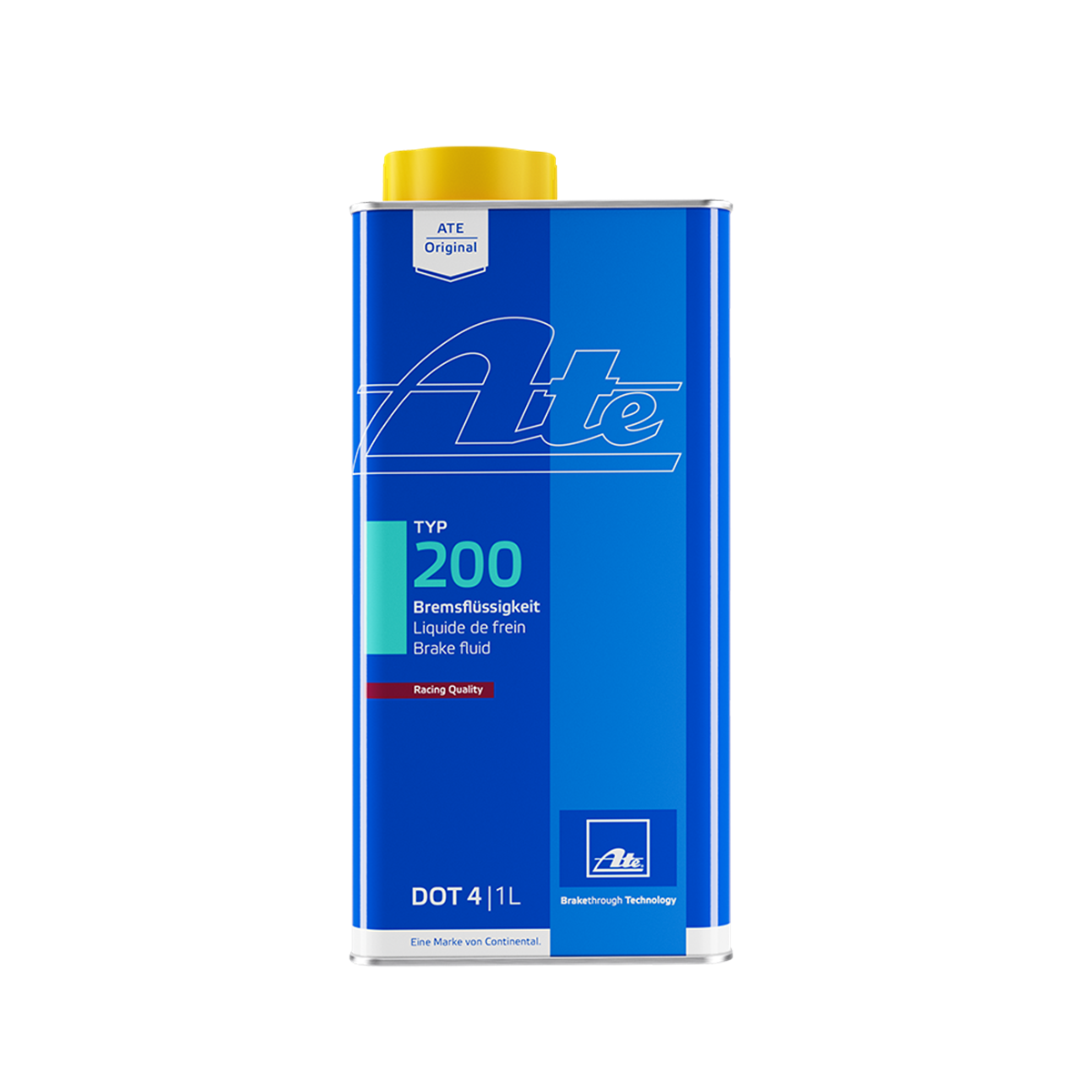

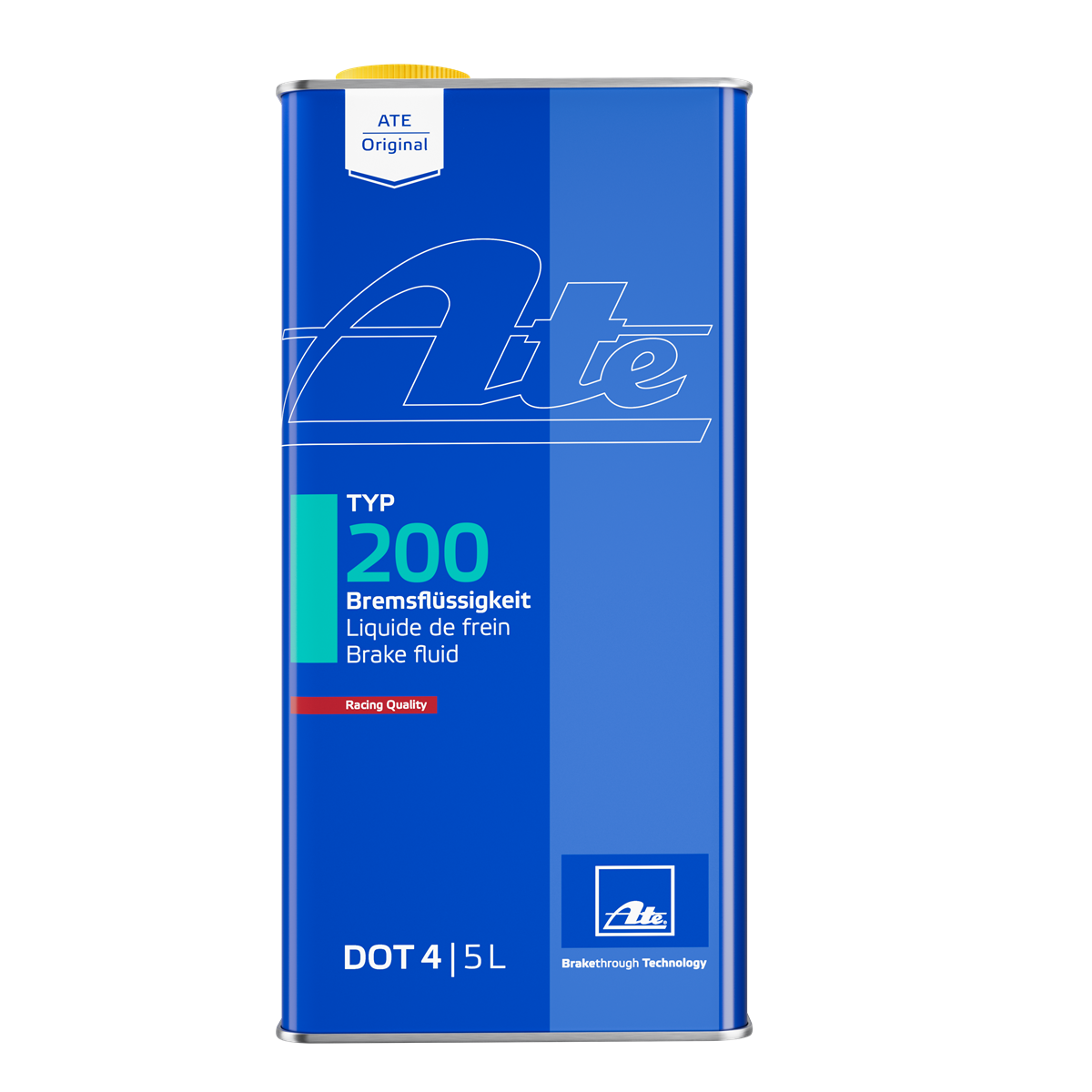

ATE TYP 200 Brake Fluid exceeds all DOT 4 standards and is designed to excel under the extreme demands of race cars and high-performance driving. The high wet and dry boiling points make this fluid an excellent choice for street driven vehicles as well. ATE TYP 200 is compatible with all DOT 3, DOT 4, and DOT 5.1 brake fluids. The formula offers a minimal drop in boiling point due to outstanding water binding properties resulting in a long-lasting fluid that can provide optimal performance for up to three years under normal highway driving conditions.



Brake Fluid


ATE SL.6 DOT 4 ISO-Class 6

ATE Super DOT 5.1



ATE Typ 200



Low viscosity for modern electronic braking systems

Advanced – high wet boiling point and excellent flowability in extreme cold conditions

Traditional – Better boiling point for more modern braking systems

Traditional – Extra high boiling point for extreme use (e.g., track)

Boiling Point min.

509 °F

509 °F

500 °F

536 °F

Wet Boiling Point. min.

347 °F

356 °F

329 °F

388 °F

Viscosity at -40 ºF

max. 700 mm2/s=cSt

max. 750 mm2/s=cSt

max. 1400 mm2/s=cSt

max. 1400 mm2/s=cSt

Change Interval

2 years

3 years

1 year

3 years
